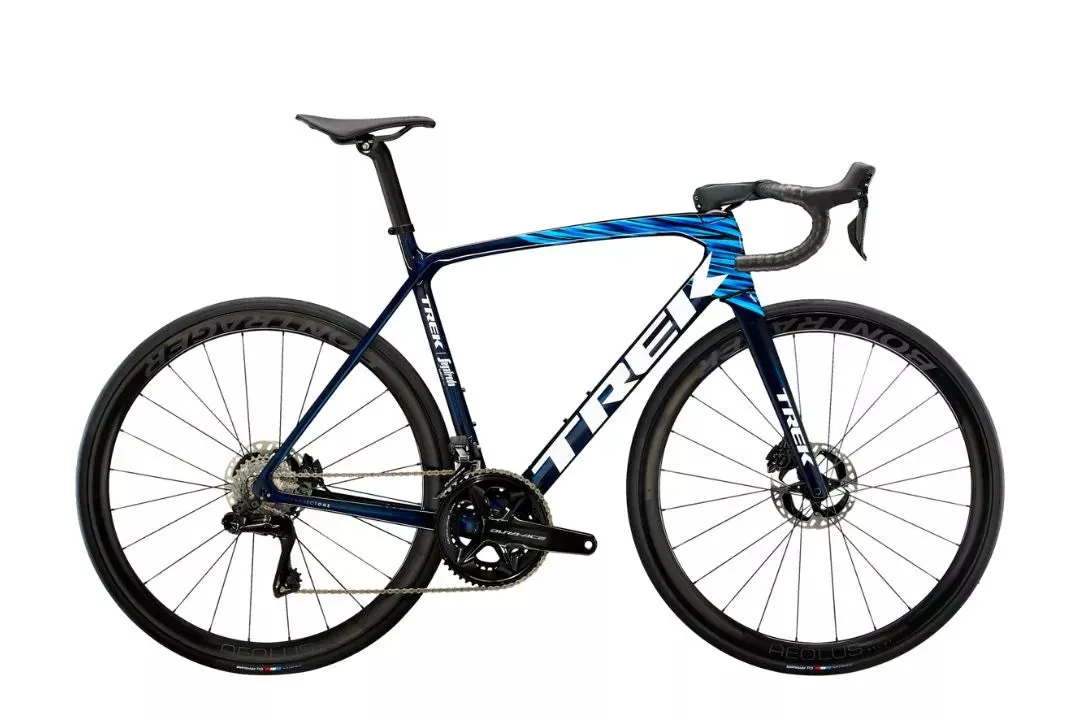

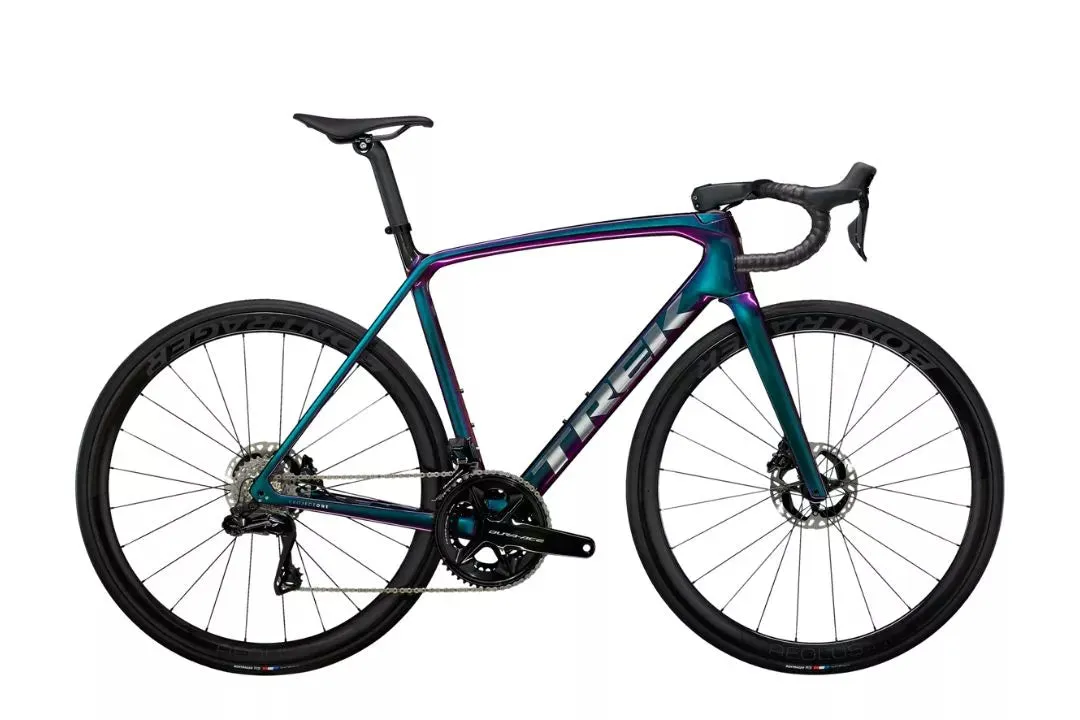

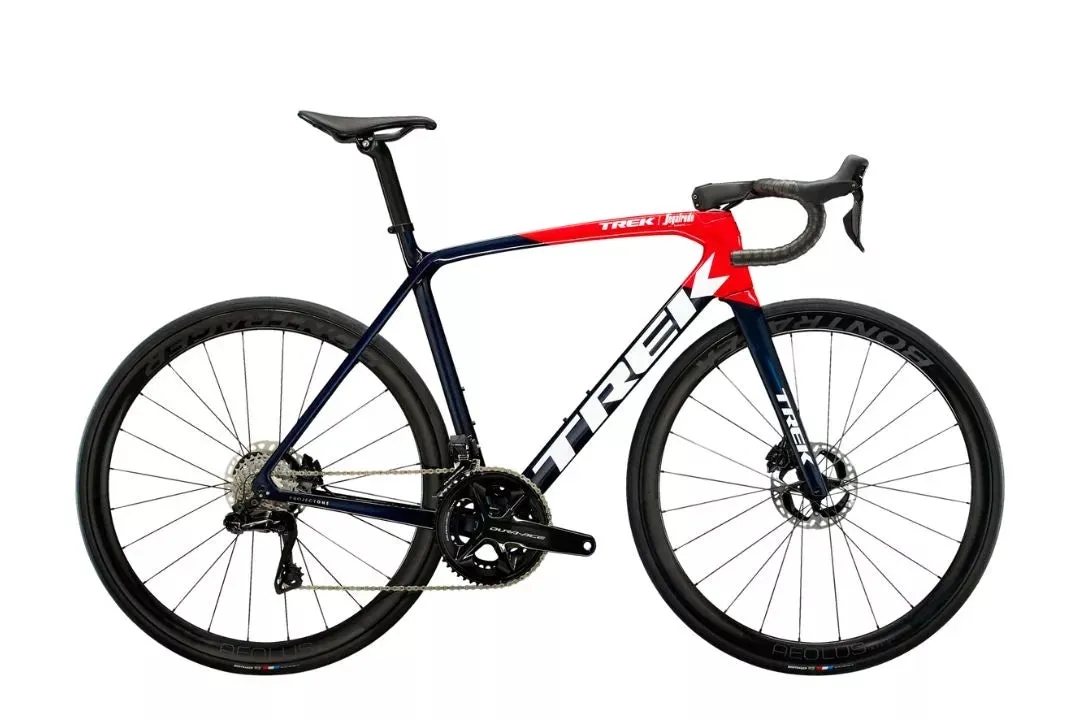

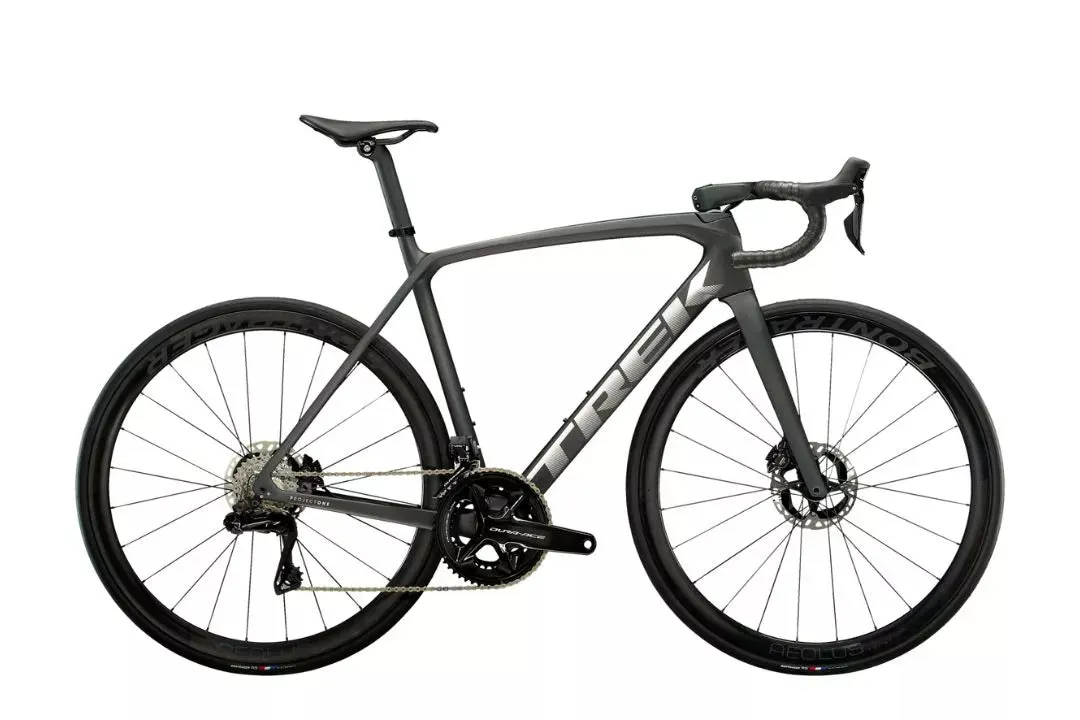

Émonda SLR 9 Disc is an ultralight, aerodynamic carbon road bike that's designed and built to be the fastest climbing bike we've ever made. You get the legendary ride quality of our lightest platform, plus more speed, thanks to aero tubes wrought from our lightest OCLV layup ever. Shimano's highest-end electronic drivetrain and our best climbing wheels give you every edge against the competition.
Specifications:
| frame | Ultralight 800 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, internal cable routing, DuoTrap S compatible, flat mount disc, 142x12 mm thru-axle |
|---|---|
| cross | Emonda SLR full carbon, tapered carbon steerer, internal brake routing, flat mount rotors, 12x100 mm thru-axle |
Wheel
| Before the wheel | Bontrager Aeolus RSL 37, OCLV carbon, tubeless-ready, 37mm rim depth, 100x12mm thru-axle |
|---|---|
| Behind the wheel | Bontrager Aeolus RSL 37, OCLV carbon, tubeless-ready, 37mm rim depth, Shimano 11 freehub, 142x12mm thru-axle |
| skewers | Bontrager Switch thru-axle, removable lever |
| skewer rear | Bontrager Switch thru-axle, removable lever |
| fetal | Bontrager R3 Hard-Case Lite, Aramid Beads, 120 tpi, 700x25 c |
| rim strip | Bontrager Aeolus XXX rim strips |
Transmission System
| gear lever | Shimano Dura-Ace R9270, 12-speed |
|---|---|
| front derailleur | Shimano Dura-Ace R9250, brazed, hem |
| rear derailleur | Shimano Dura-Ace R9250 |
| *crank | Size: 47 Shimano Dura-Ace R9200, 52/36, length 165 mm |
| Size: 50, 52 Shimano Dura-Ace R9200, 52/36, length 170mm | |
| Size: 54, 56, 58 Shimano Dura-Ace R9200, 52/36, length 172.5 mm | |
| Size: 60, 62 Shimano Dura-Ace R9200, 52/36, length 175mm | |
| bottom bracket | Praxis, T47 thread, internal bearing |
| a magnetic tape | Shimano Dura-Ace R9200, 11-30, 12-speed |
| chain | Shimano XTR M9100, 12-speed |
Element
| *saddle | Size: 47, 50, 52 Bontrager Aeolus P2 Pro, carbon fiber rail, 155mm width |
|---|---|
| Size: 54, 56, 58, 60, 62 Bontrager Aeolus Pro, carbon fiber rail, 145mm width | |
| *Seat post | Size: 47, 50, 52, 54 Bontrager carbon fiber seatmast cap, 20mm offset, short length |
| Size: 56, 58, 60, 62 Bontrager carbon fiber seat mast cap, 20mm offset, high length | |
| *Integrated pole | Size: 47, 50 Bontrager Aeolus RSL integrated handlebar/stem, OCLV carbon, Di2 cable routing, 100mm reach, 124mm drop, 38cm width, 80mm stem length |
| Size: 52 Bontrager Aeolus RSL integrated handlebar/stem, OCLV carbon, Di2 cable routing, 100mm reach, 124mm drop, 40cm width, 90mm stem length | |
| Size: 54 Bontrager Aeolus RSL integrated handlebar/stem, OCLV carbon, Di2 milled, 100mm reach, 124mm drop, 42cm width, 90mm stem length | |
| Size: 56 Bontrager Aeolus RSL integrated handlebar/stem, OCLV carbon, Di2 milled, 100mm reach, 124mm drop, 42cm width, 100mm stem length | |
| Size: 58 Bontrager Aeolus RSL integrated handlebar/stem, OCLV carbon, Di2 milled, 100mm reach, 124mm drop, 42cm width, 110mm stem length | |
| Size: 60, 62 Bontrager Aeolus RSL integrated stem/stem, OCLV carbon, Di2 milled, 100mm reach, 124mm drop, 44cm width, 110mm stem length | |
| handlebar tape | Bontrager Supertack Perf Tape |
| brake disc | Shimano MT900, 160mm, centerlock |
Weight
| Weight Limit | The maximum total weight limit for this bike (bicycle, rider, and cargo combined) is 125 kg (275 lbs). |
|---|
